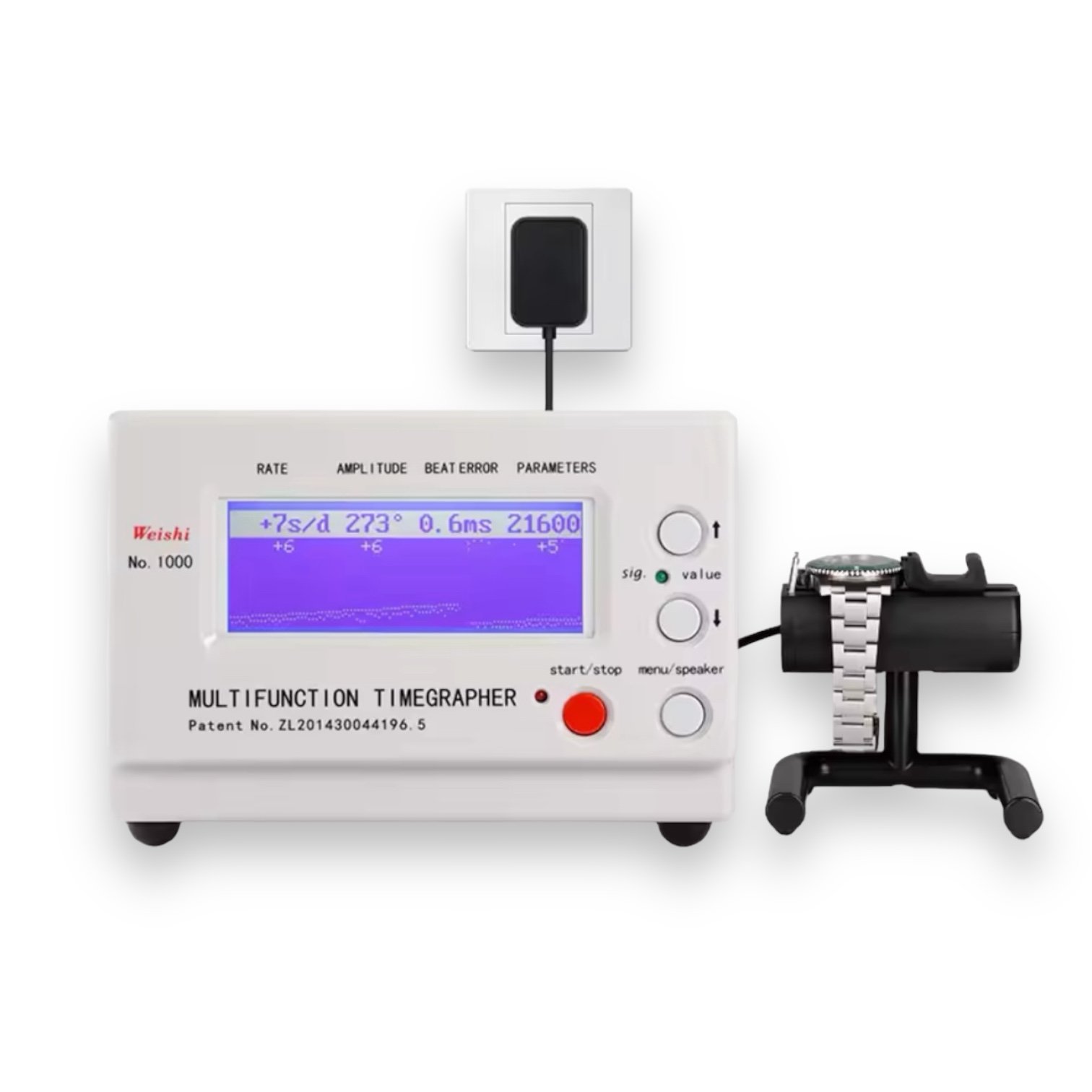

Watch Timegrapher Mechanical Watch Timing Machine
Is your watch running a little slow? Not sure when it’s time for a check-up? The Multifunction Watch Timing Machine is here to help!
This advanced tool automatically detects the Beats per Hour (BPH) of most industry-standard watches, ensuring precise measurements every time. For watches with custom BPH settings, you can easily program them in manually. Once detected, the Timegrapher displays critical data like beat rate, amplitude, beat error, and lift angle—giving you an instant snapshot of your watch's condition and whether it needs a tune-up or repair.
Whether you’ve just bought a new watch or discovered a vintage timepiece at an antique store, the Multifunction Watch Timing Machine is an essential tool to ensure your watch is running perfectly.

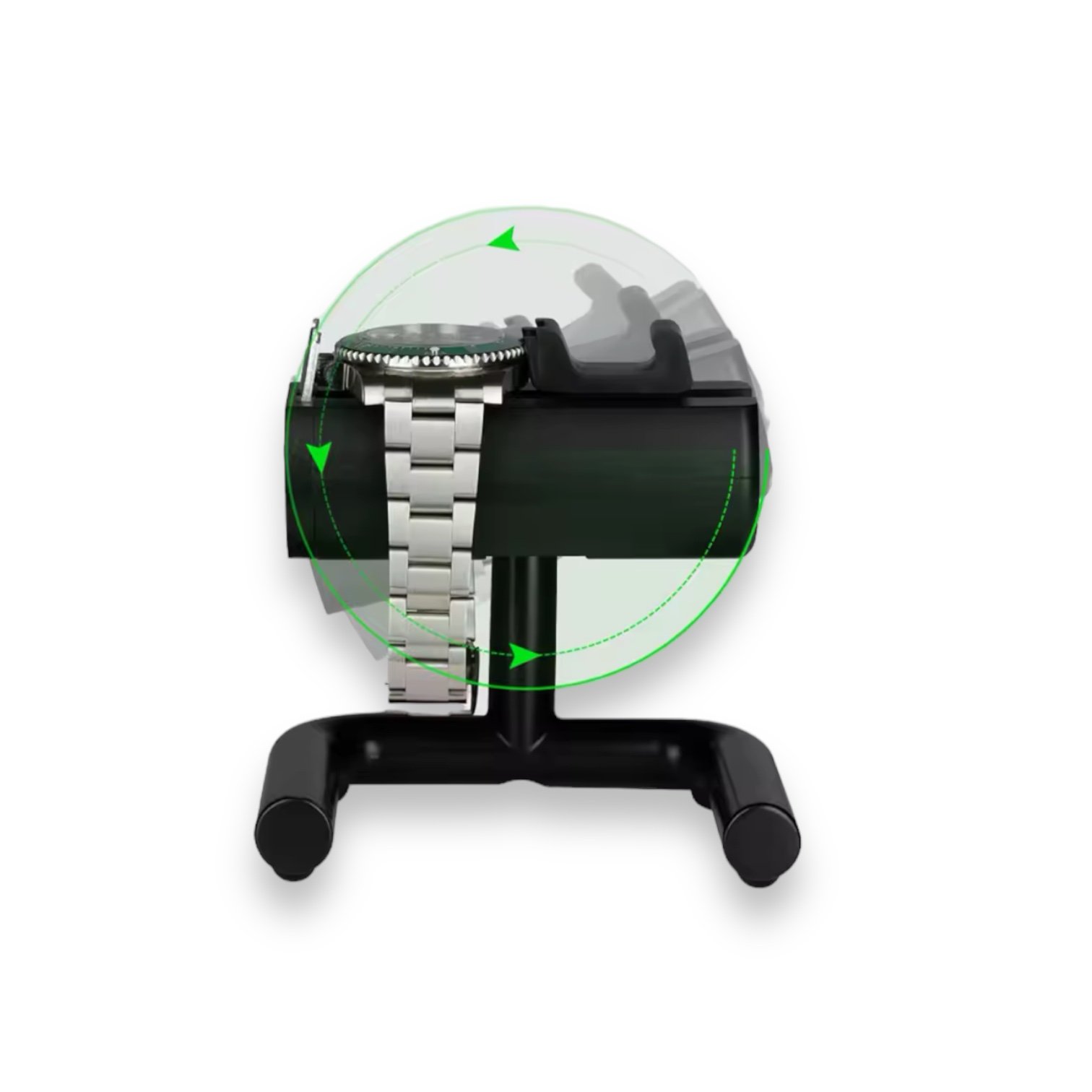

6 Measurement Positions
Beats Per Hour AUTOMATIC Setting: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200
Beats Per Hour Range Manual Setting (If you need to use the Manual Setting): 3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200
Specifications
Power Supply: AC 80 - 240 V (two-wire)
Display: Color LCD monitor, 480 x 272 pixels
Range of Rate Deviation: Can be set at "÷ 99.9 s/d" or "‡
999 s/d" for range
Amplitude: Resolution of 1 degree. Range: 100 -
360 degrees
Beat Error: 0 - 9.9 ms. 0.1 ms resolution
Sampling Periods: 2/4/6/8/12/20/30/60 seconds
Lift Angle: 30 to 70 degrees. Default: 52 degrees
